HEPA Air Filter Mini pleating machine (MINI-700)

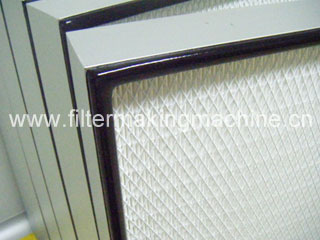

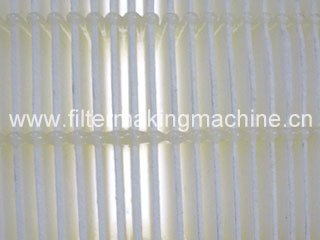

Mini pleating machine is used in the pleating and gluing of fibre glass filter media, (do the gluing of polyester spun bonded non-woven filter media and so on), to produce high efficiency air filters. Easy operation and high efficiency.

1-Specifications:
1) Filter Media Max. Width: 630mm
2) Working Speed: Adjustable 0 - 80m/min
3) Pleating Height(Depth): 16 - 100mm (Adjustable by changing rollers)
4) Space Between Gluing Lines: 25mm
5) Hot Melt Nozzles: 24 + 24 Nozzles (24 nozzles on each sides)

2-Other Features:
1) Pleat counting & marking device
2) Total power of motors: 8KW 380V
3) Speed adjustable motor
4) Unwinding stand
5) Electrical supply as per customer's requirements

3- Machine Working Dimension Required: 8000 x 1150 x 1700mm

4- Machine Parts and Dimensions:
1) Marking Machine: 1250mm x 950mm x 1100mm
2) Pleating & Gluing Part: 2250mm x 1150mm x 1700mm
3) Forming and Conveyer (Collecting part): 2200 x 1000 x 1000mm
4) Separate Gluing Machine: 800mm x 700mm x 1550mm

Price: ****usd/line on FOB Xingang,China basis
Delivery time: Within 50 days upon receipt of deposit
Payment: 30% deposit,balance before shipment.
